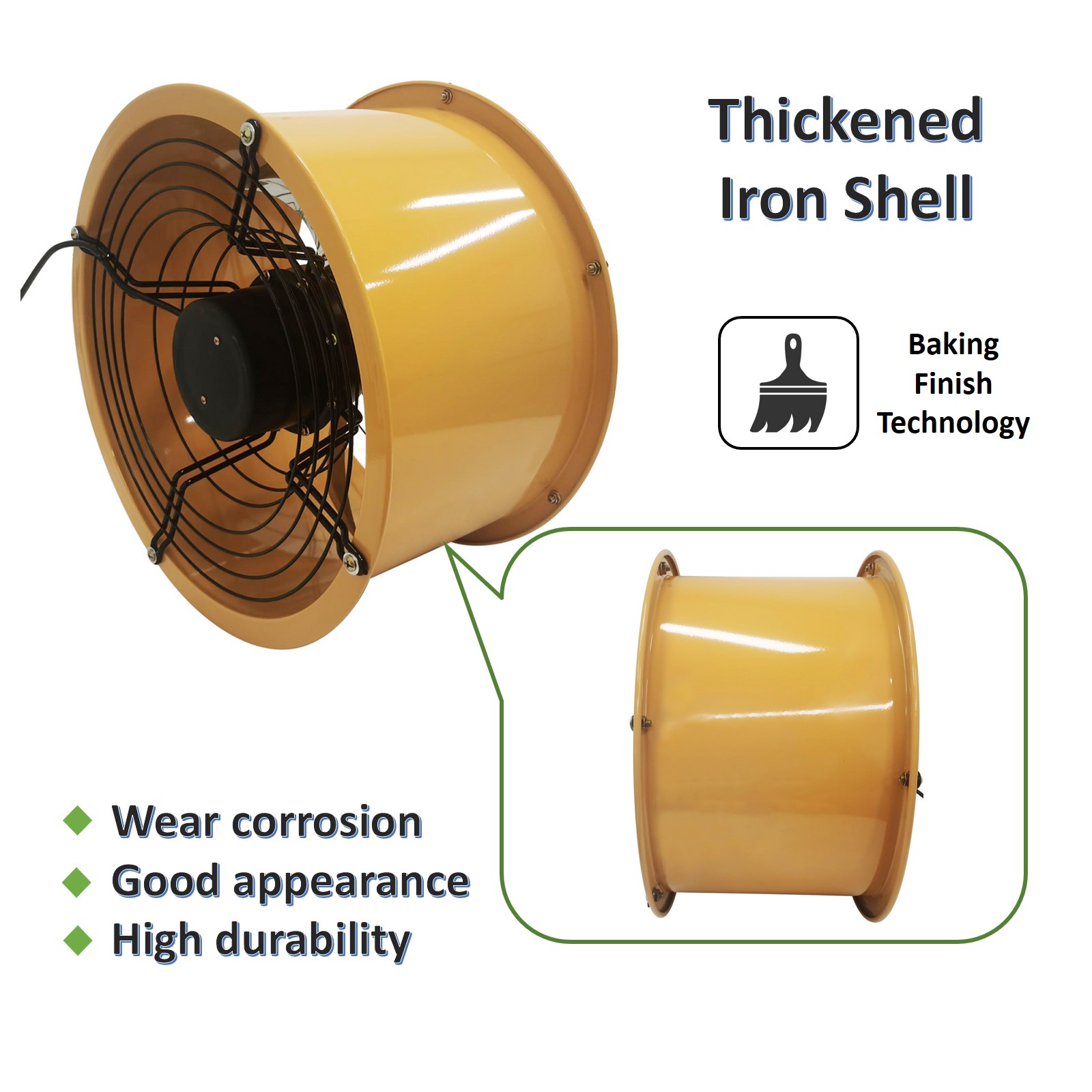

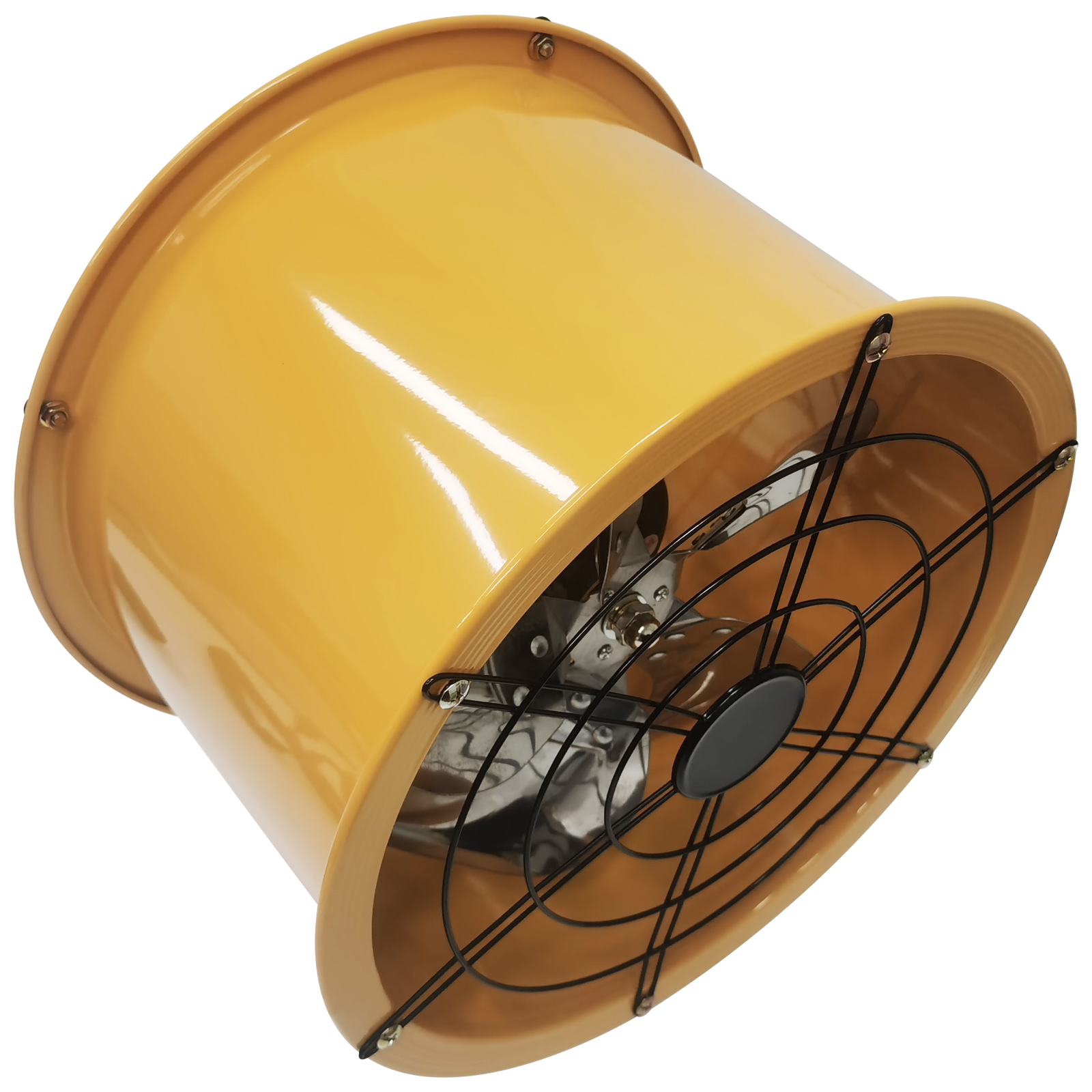

220V 14''Cylinder Pipe Fan

Feature:

It is suitable for kitchen, warehouse and workshop and so on.

Parameters:

Voltage:220V

Power:250W

Size:14''

Air volume:3530m³/H

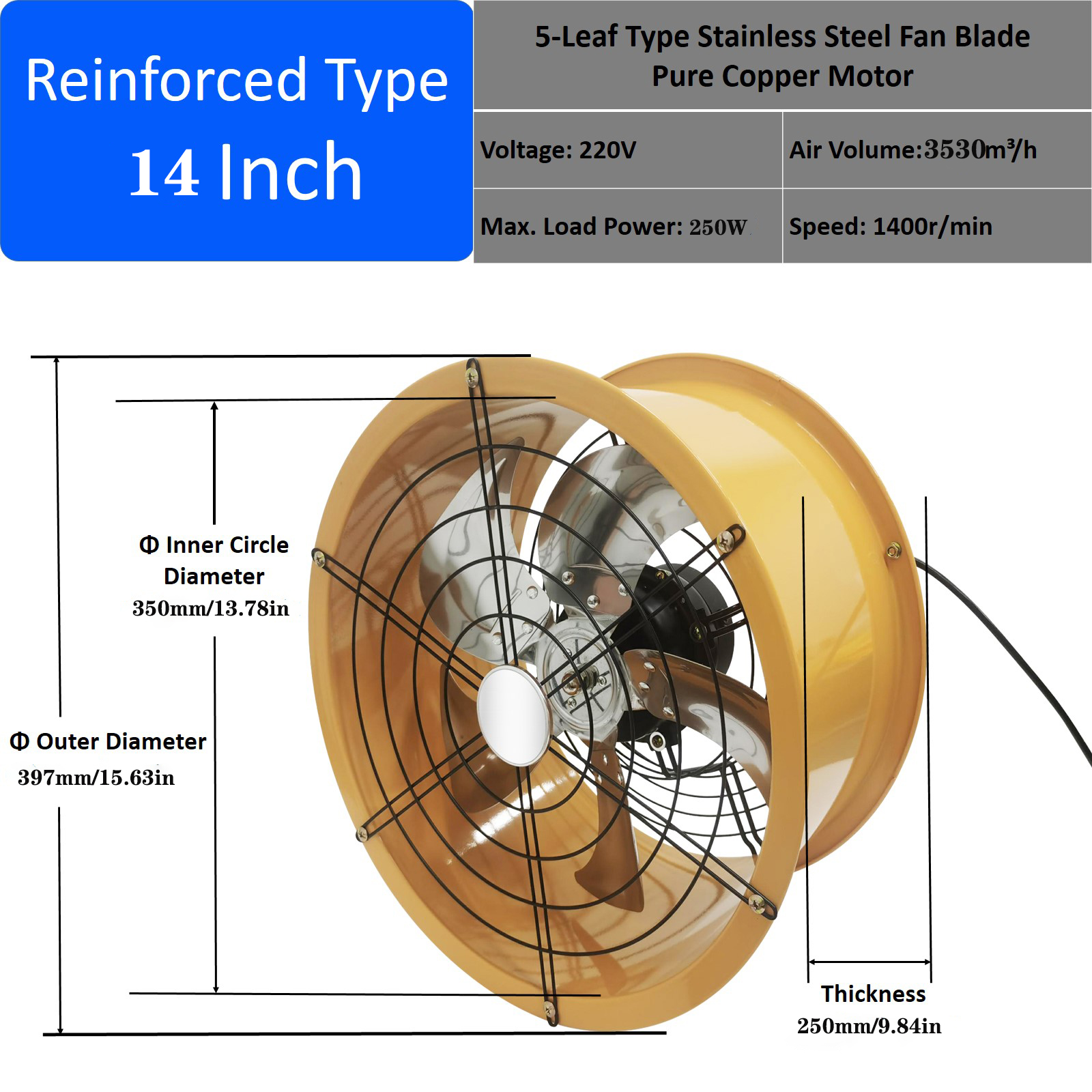

Inner circle diameter：35cm

Diameter of outer circle ：40cm

Shape thickness：About 25.5cm

Pressure:98pa

Noise:62dB

Speed:1400r/min

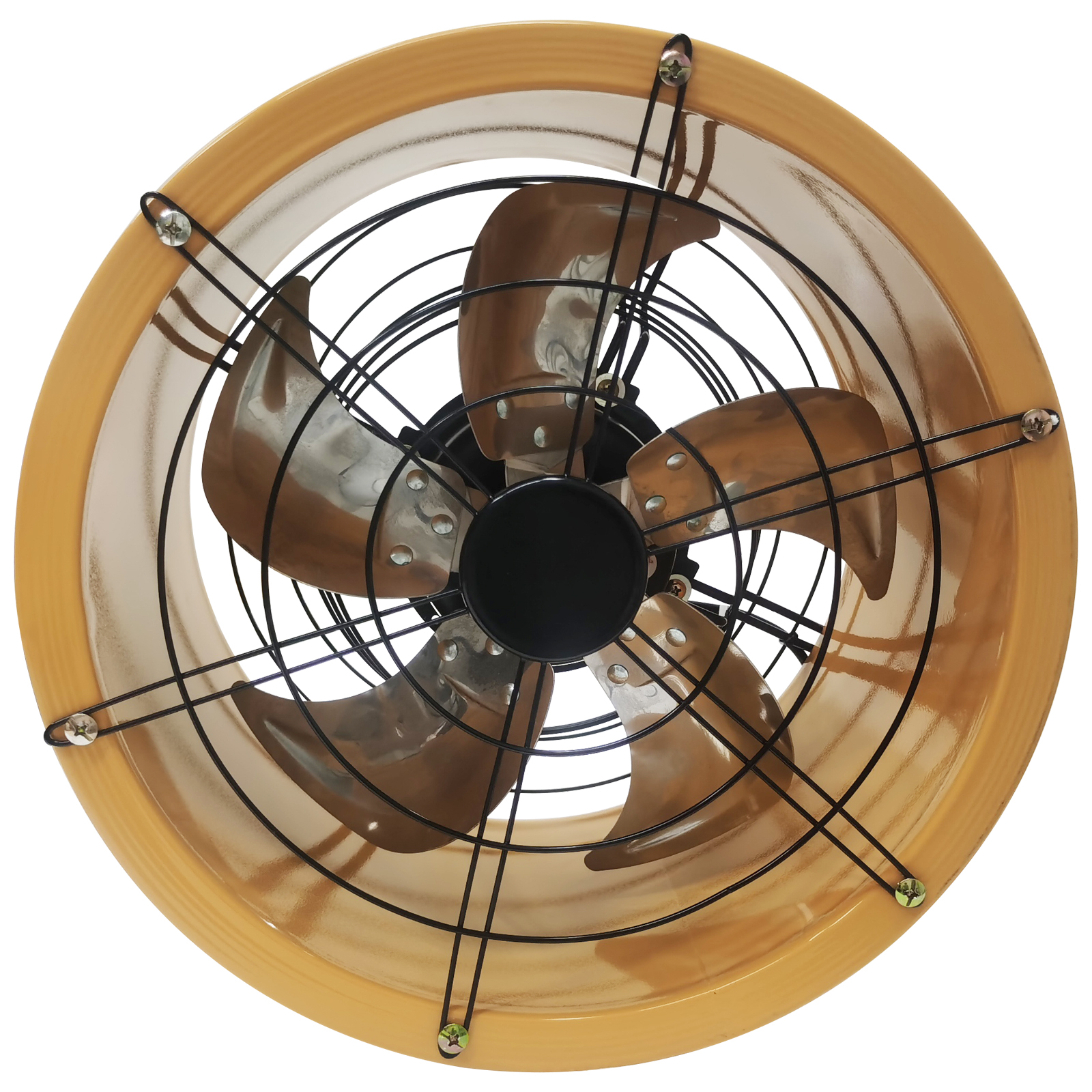

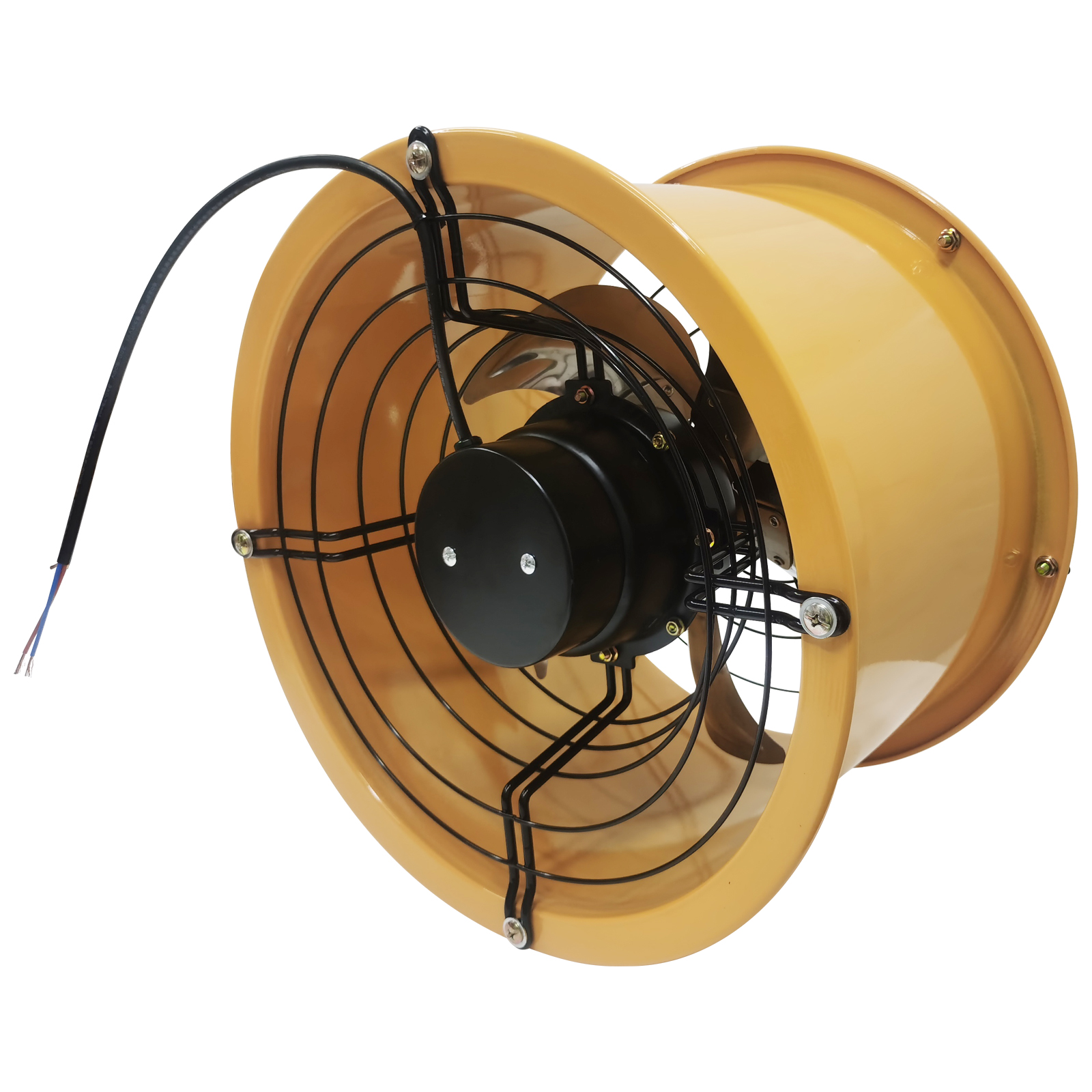

Detail Display

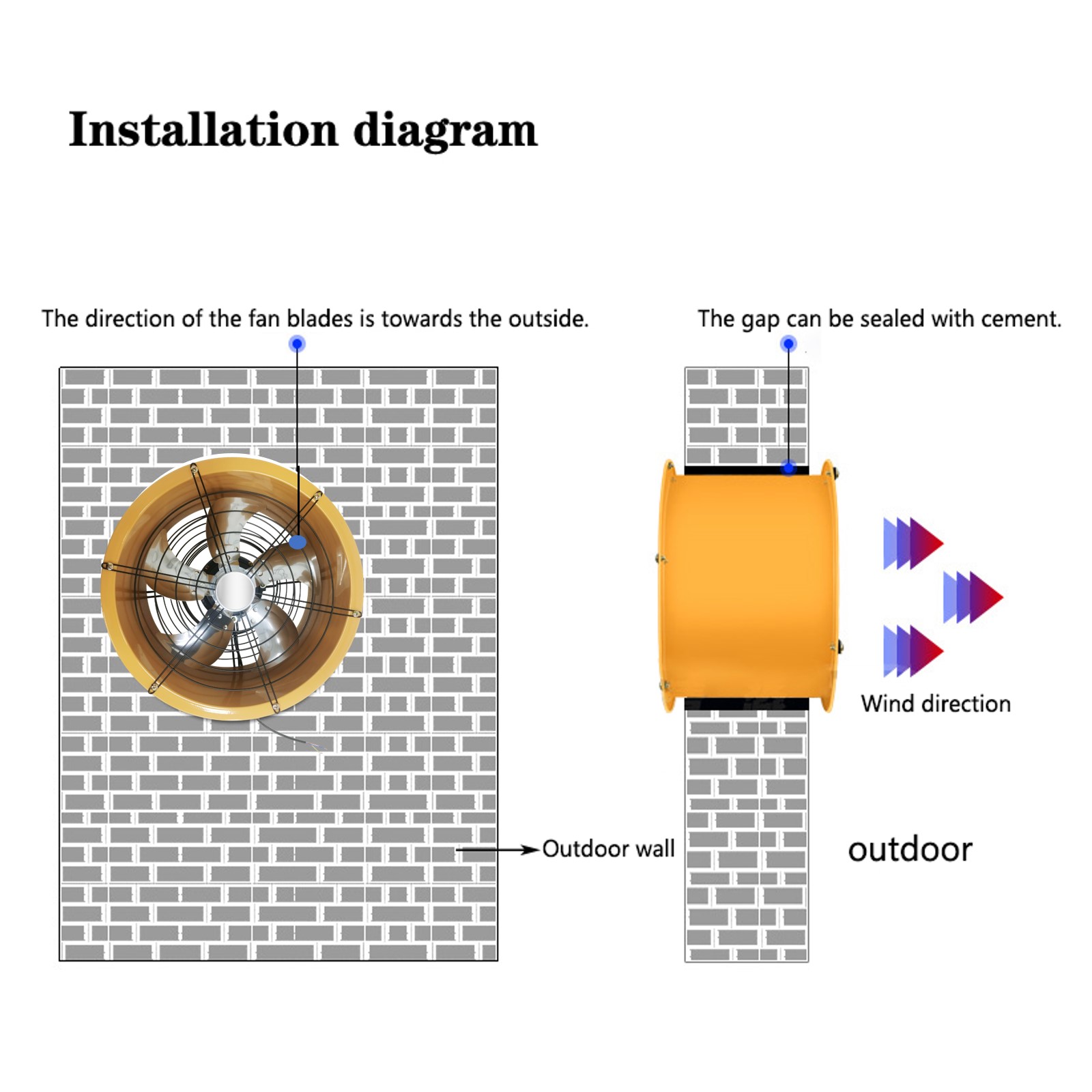

1.When installed, the fan is adjusted horizontally and vertically to ensure smooth running of the blades.。

2.After fixing the fan, the remaining space needs to be sealed.

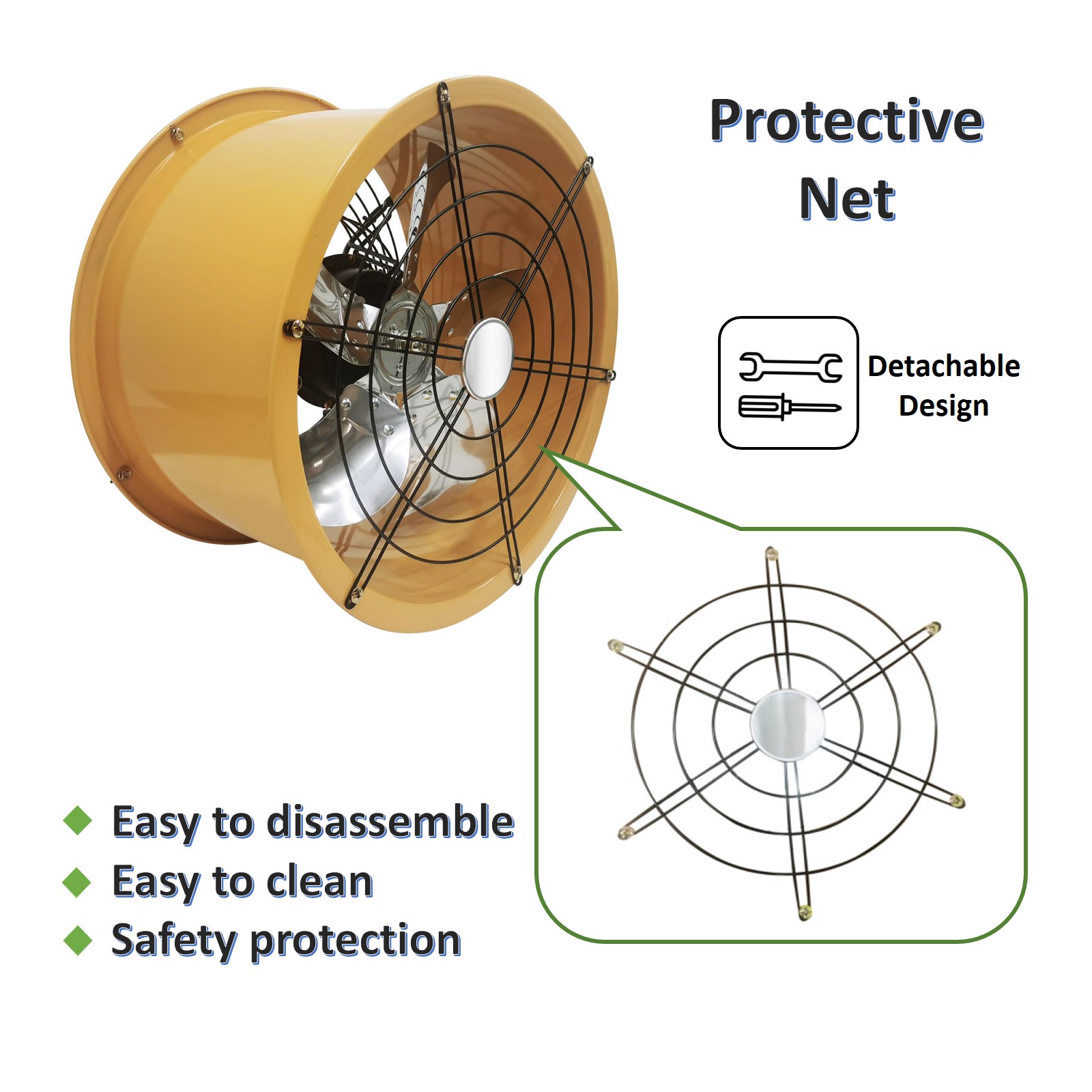

3.If necessary, please remove the protective net.

Note:

1.The color of different factory batches will be different.

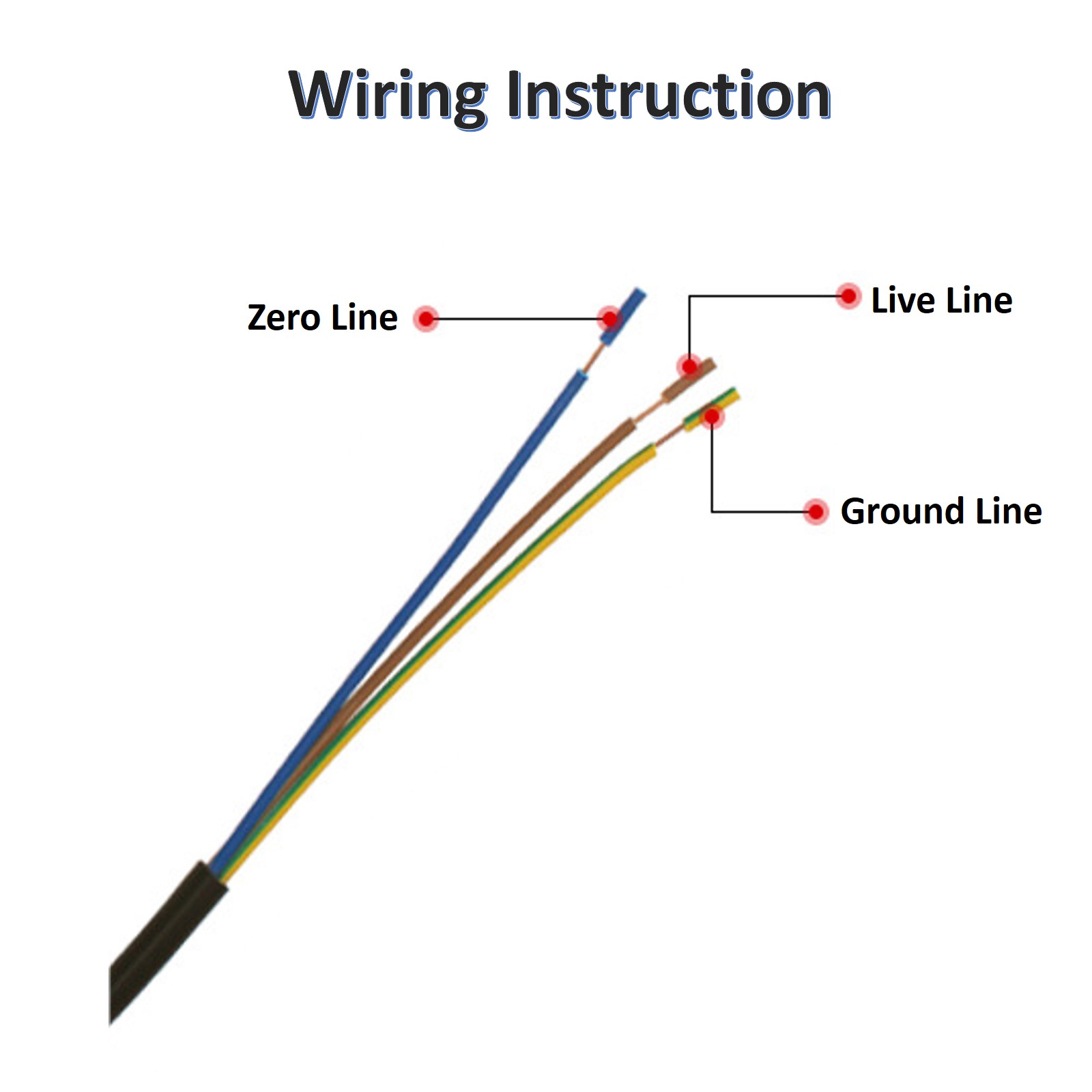

Unchanged is the ground wire. (Color:Yellow and green)

2. Ground wire grounding during wiring (You can also choose not to connect.)

Item included: 022599

220V 14''Cylinder Pipe Fanx1
