Automatic Saw Blade Grinding Machine 220V




Features
This machine is a fully automatic gear grinding machine designed according to the grinding of circular saw blades. parameterThe machine has the advantages of simple structure, convenient operation, complete functions, high efficiency and energy saving, low carbon environmental protection and accurate grinding.
Structure

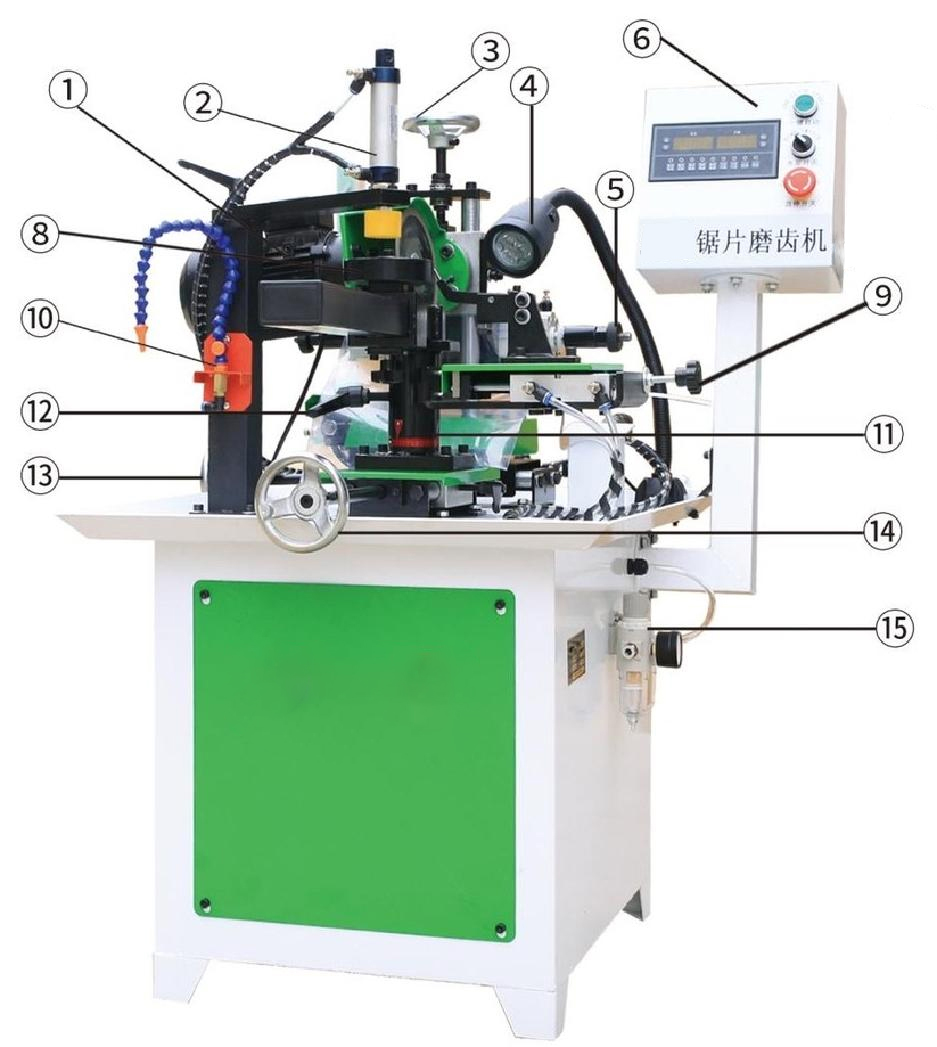

1.grinding wheel drive motor 2.Pressure cylinder 3.Motor lifts handwheel 4.Work light 5.Round nuts with left and right teeth 6.Computer control box 8.Walking deck 9.Pitch adjusting screw 10.Cutting fluid pipe 11.Vertical shaft 12.Vertical shaft locking handle 13.The motor moves the handwheel left and right 14.Table hand-wheel 15.oil-water separator
Parameter
	Voltage	220V
	Blade size	100-600mm
	Pitch	5-45mm
	Working pressure	0.6Mpa
	Pulling speed	0-55/min
	Power	550W
	Speed of grinding wheel	2850r/min
	Grinding wheel specifications	1503210mm
	Tooth shape	left and right teeth, flat teeth, three left and one right, three right and one left

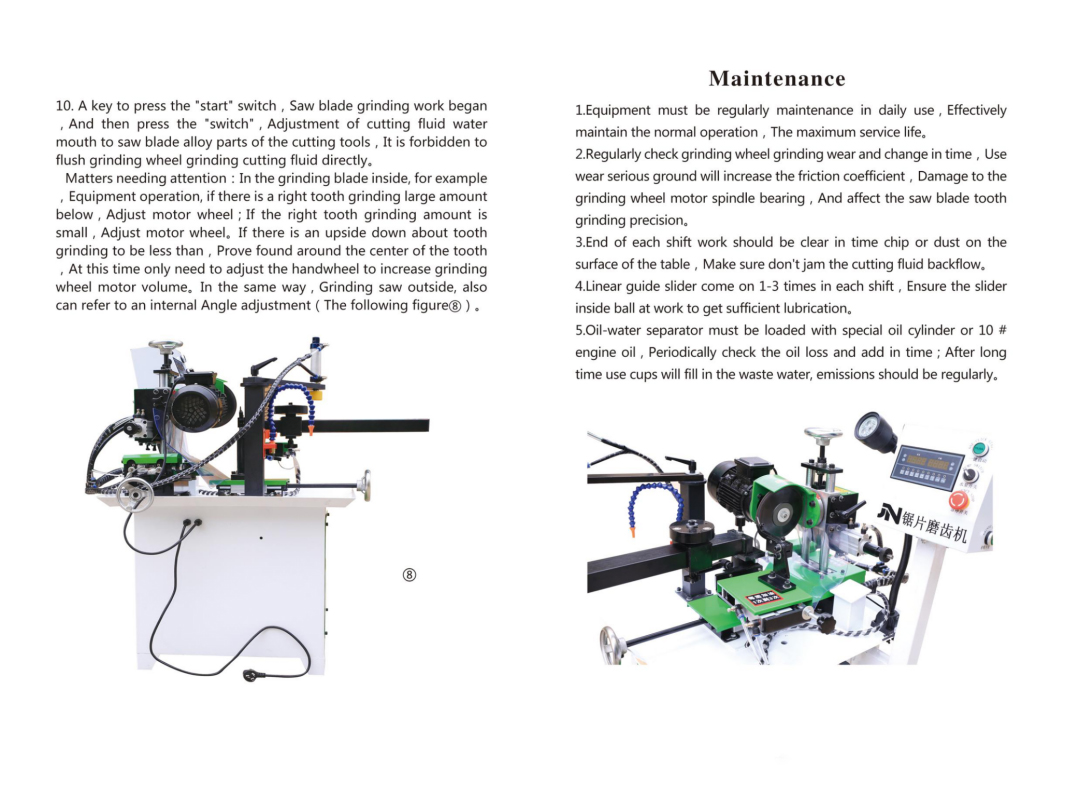

Maintenance
1.Equipment must be regularly maintenance in daily use,Effectively maintain the normal operation,The maximum service life. 2.Regularly check grinding wheel grinding wear and change in time,Use wear serious ground will increase the friction coefficient ,Damage to the grinding wheel motor spindle bearing ,And affect the saw blade tooth grinding precision. 3.End of each shift work should be clear in time chip or dust on the surface of the table ,Make sure don't jam the cutting fluid backflow. 4.Linear guide slider come on 1-3 times in each shift,Ensure the slider inside ball at work to get sufficient lubrication. 5.Oil-water separator must be loaded with special oil cylinder or 10# engine oil ,Periodically check the oil loss and add in time;After long time use cups will fill in the waste water,emissions should be regularly.
Operating instructions

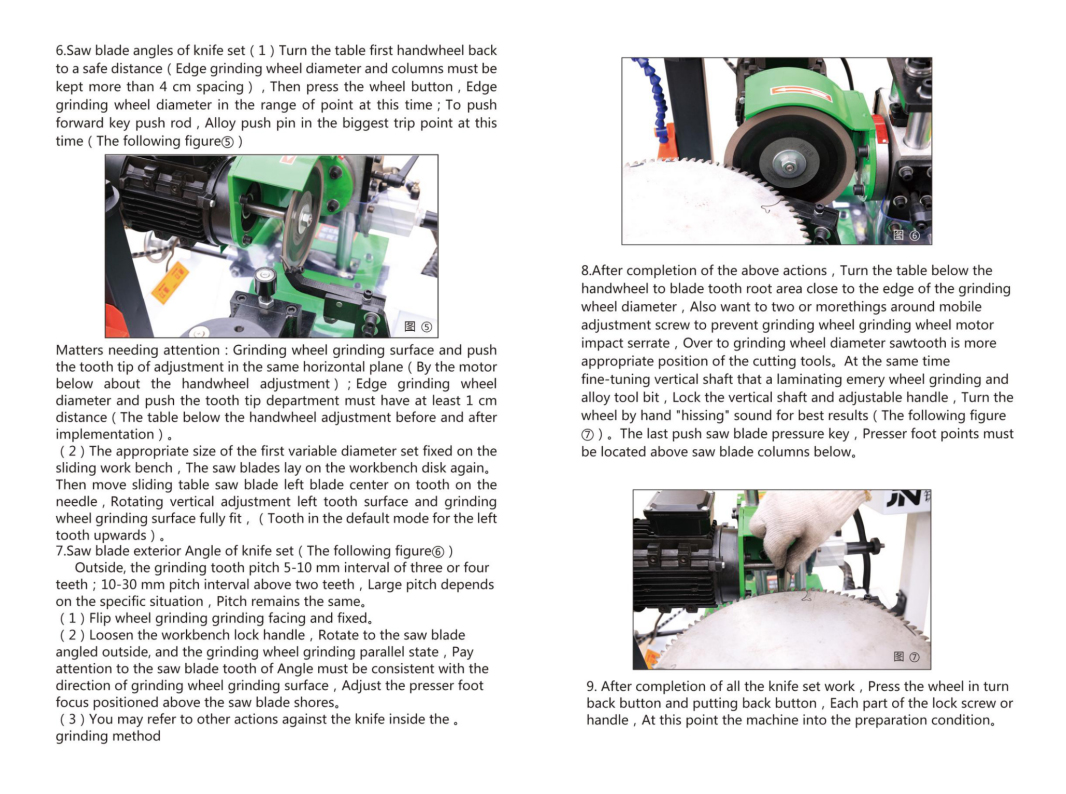

1. Tooth Number Setting (Taking a Saw Blade with 100 Teeth as an Example) The initial state of the tooth number setting of this machine is to randomly display 4 Arabic numerals. According to the number of teeth of the saw blade to be sharpened, first press the > key. At this time, the cursor of the last digit flashes. Press the + or - key until the digit is 0. Then press the > key again. At this time, the cursor of the third digit flashes. Press the + or - key again until the digit is 0, and then press the > key again. By analogy, set the second digit to 1. Finally, press the stop key, and all settings are completed. 2. Adjustment of Tooth Tip Height For the adjustment of the tooth tip height of this machine, it is necessary to ensure that the sliding worktable and the saw blade support column are on the same horizontal plane. In actual work, the adjustment should be carried out according to the thickness of the saw blade combined with the center height of the grinding wheel. 3. Adjustment of the Center Height of the Grinding Wheel (as shown in Figure ① below) Operation related video links：https://youtu.be/syhfr-L3kzw
Safety precautions
1. The equipment placement site should be kept clean, flat, and with a firm foundation. Before starting the machine, check that all parts of the equipment are properly fastened and there is no loosening. 2. All operations such as parameter adjustment, angle setting, tool setting, and replacement of grinding wheel sheets must be carried out with the power supply turned off. 3. Operators must wear protective glasses and protective clothing. Female operators must tie up their long hair and wear work caps or safety helmets. 4. When starting or during the operation of the equipment, keep fingers away from the rotating areas of the saw blade and the grinding wheel sheet to avoid injuries caused by negligence. 5. If the equipment makes abnormal noises or there is smoke from the circuit during operation, immediately cut off the power supply, and contact our company's after-sales personnel or professional maintenance personnel. Do not disassemble and repair it yourself to avoid secondary injuries. 6. When the equipment is not in use for a long time, turn off the power switch and unplug the power plug. If the power cord is damaged, it should be replaced in time. 7.Please keep children away from machines.

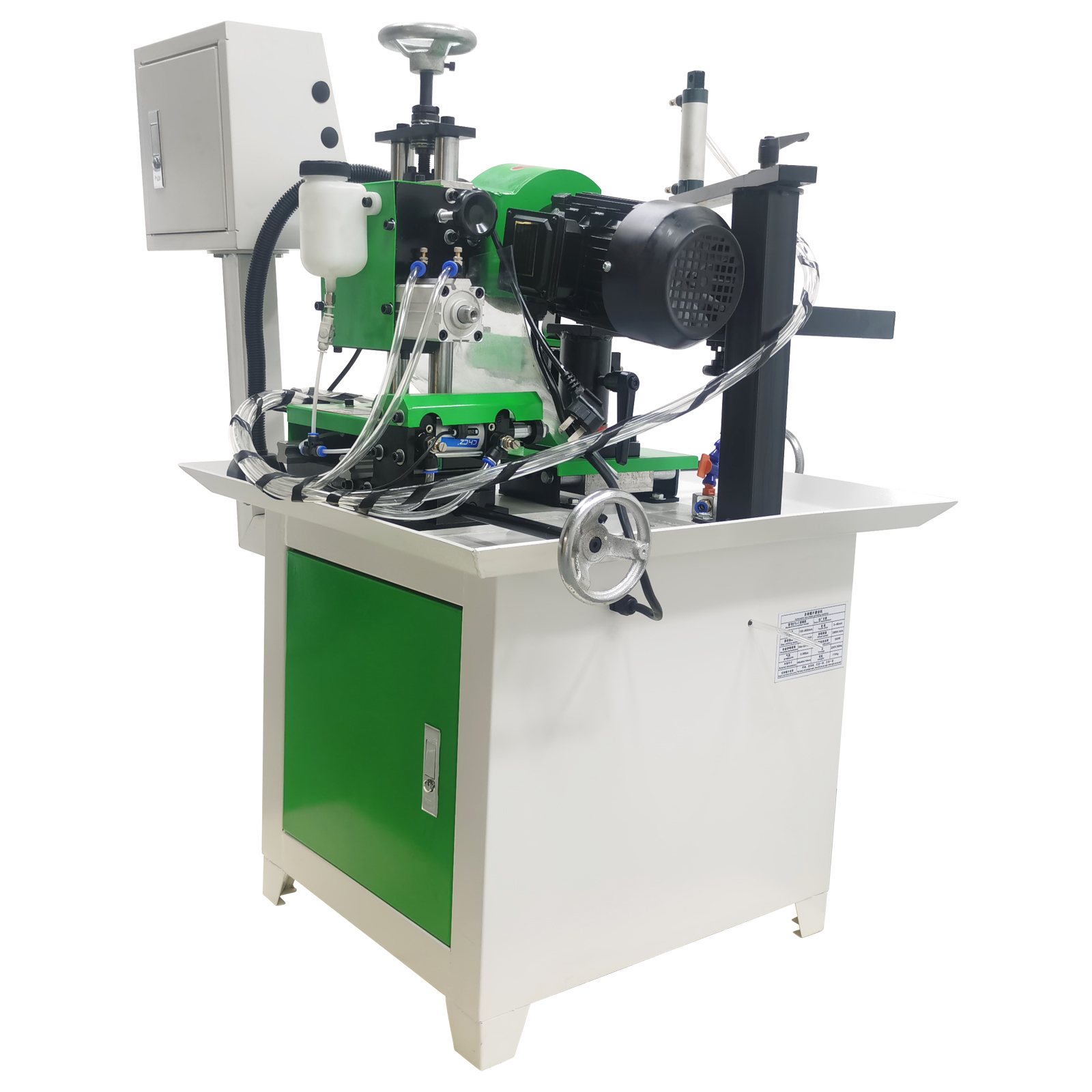

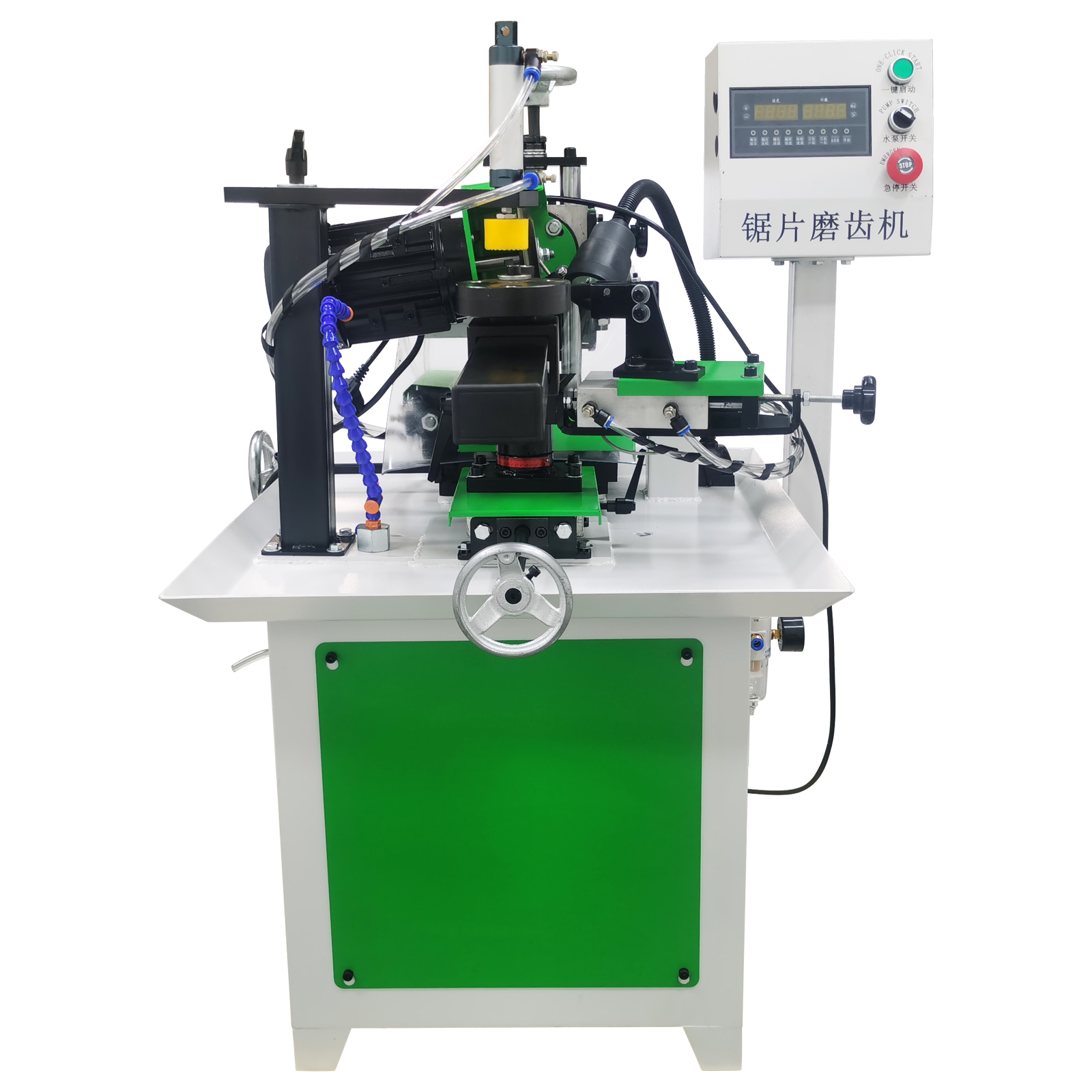

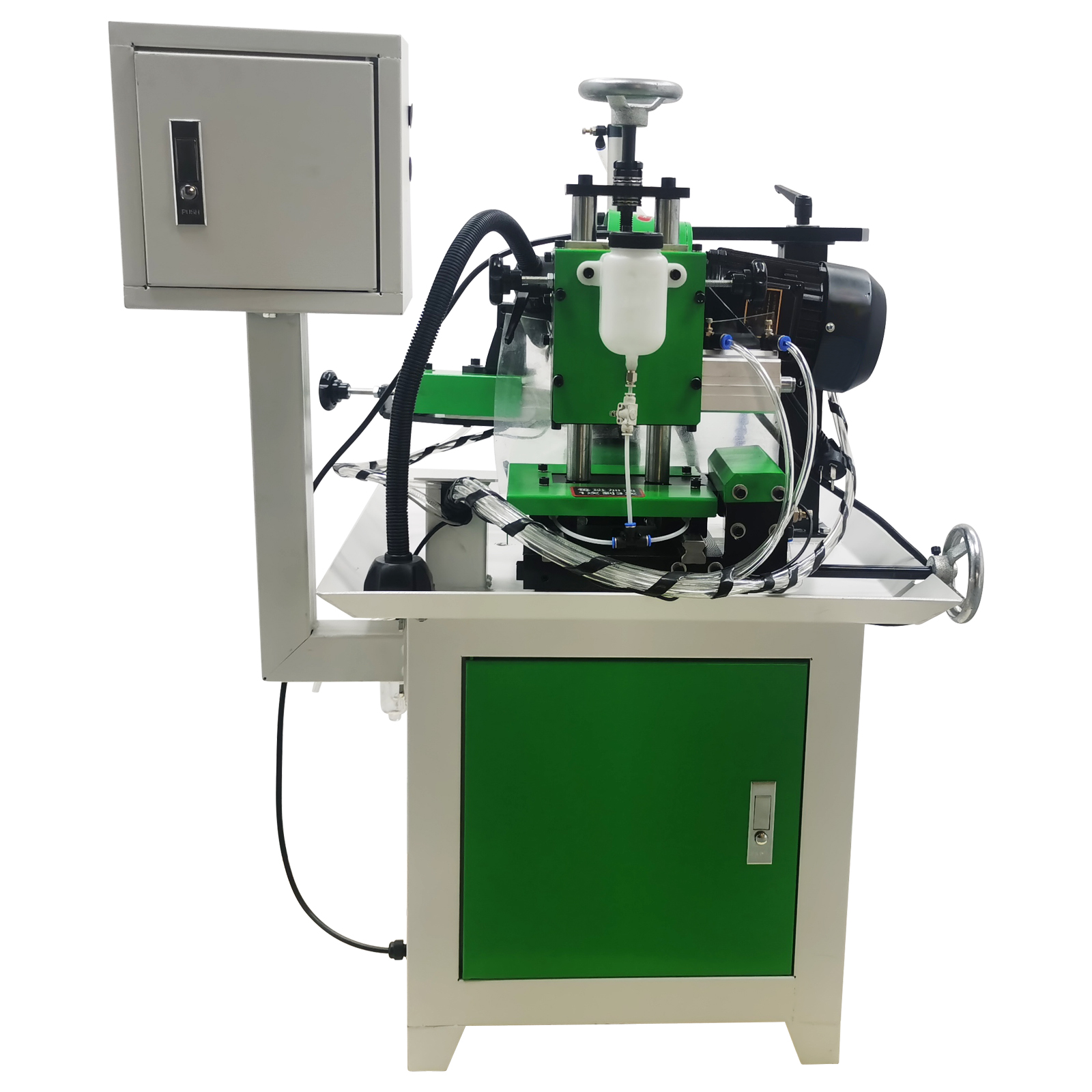

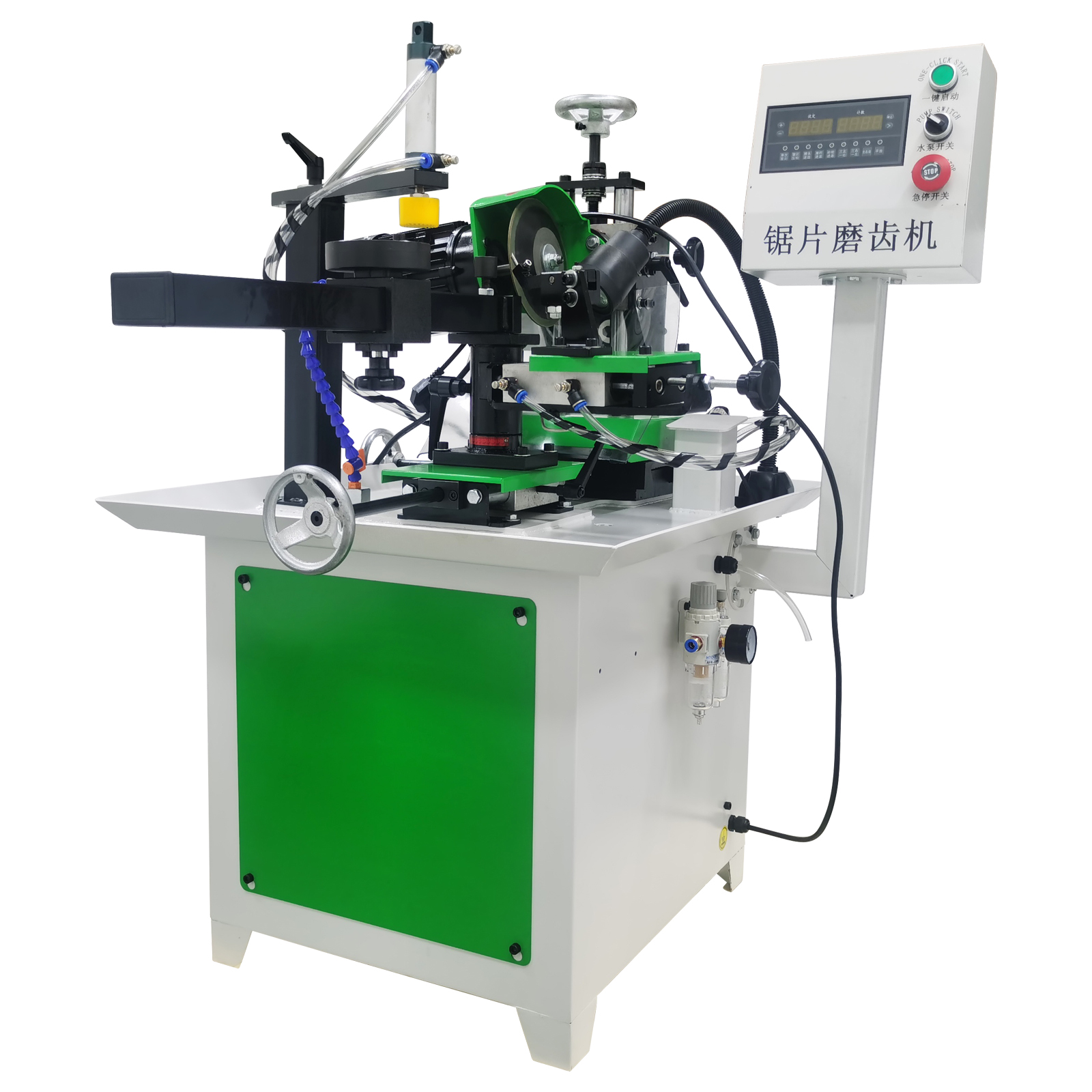

Display

Note
The machine needs to be connected to an air compressor, which needs to be provided by the customer themselves.
